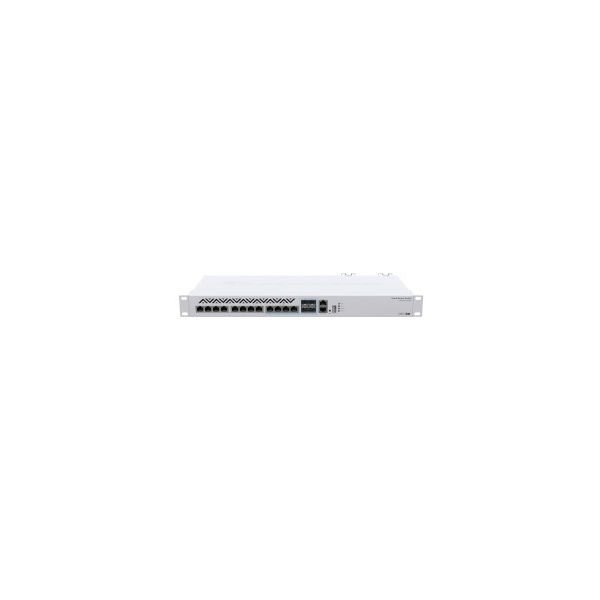

Mikrotik Cloud Router Switch CRS312-4C+8XG-RM, 8×1G/2.5G/5G/10G RJ45, 4×Combo ports (1G/2.5G/5G/10G RJ45 ili 10G SFP+), RouterOS L5/SwitchOS (dual boot), 1U rackmount, Redunant PSU

- Switch of the future: the first MikroTik product with 10G RJ45 Ethernet ports and SFP+

- Remove the bottleneck from your network setup – it is time to upgrade that 1 Gigabit switch to something truly powerful and enjoy real speed. Introducing CRS312-4C+8XG-RM – our first product with 10G RJ45 Ethernet ports. Moreover, it also has 4 x 10G combo ports: use them for 10G RJ45 Ethernet or 10G SFP+, when you need an additional fiber connection. Combo ports can be used alongside the 8 regular 10G RJ45 Ethernet ports at all times. These ports can also be software selected, so you can use RouterOS scripting, to decide which combo ports will be active.

- This device is a practical solution for those who work with huge data files and need fast, capable connection 24/7: multimedia production, scientific research, game development, big data analysis and so on. CRS312-4C+8XG-RM has a dual power supply for redundancy – no unexpected downtime when the deadlines are looming. It has a full size USB, a console port for configuration and a 1U rackmount case – fits all the standard racks.

- You can choose between our legendary feature-packed RouterOS for booting or a simpler, but still powerful SwOS. If you would like the ability to use routing and other Layer 3 features in your CRS, use RouterOS.

- This switch has a great total non-blocking throughput of 120 Gbps, switching capacity of 240 Gbps and forwarding rate of 178 Mpps. CRS312-4C+8XG-RM – built for professionals, great for everyone!


Specifications
Product code: CRS312-4C+8XG-RM
- Architecture: MIPSBE
- CPU: QCA9531
- CPU core count: 1
- CPU nominal frequency: 650 MHz
- Switch chip model: 98DX8212
- Dimensions: 443 x 183 x 44 mm
- RouterOS license: 5
- Operating System: RouterOS / SwitchOS
- Size of RAM: 64 MB
- Storage size: 16 MB
- Storage type: FLASH
- MTBF: Approximately 200000 hours at 25C
- Tested ambient temperature: -30°C to 70°C

Powering
- Number of AC inputs: 2
- AC input range: 100-240
- Max power consumption: 60 W
- Cooling type: 4 fans

Ethernet
- 10/100 Ethernet ports: 1
- Number of Combo 10G Ethernet/ SFP+ ports: 4
- Number of 1G/2.5G/5G/10G Ethernet ports: 8

Peripherals
- Serial console port : RJ45
- Number of USB ports: 1
- USB Power Reset: Yes
- USB slot type: USB type A
- Max USB current (A): 1

Other
- CPU temperature monitor: Yes
- Voltage Monitor: Yes

Certification & Approvals
- Certification: CE, EAC, ROHS
