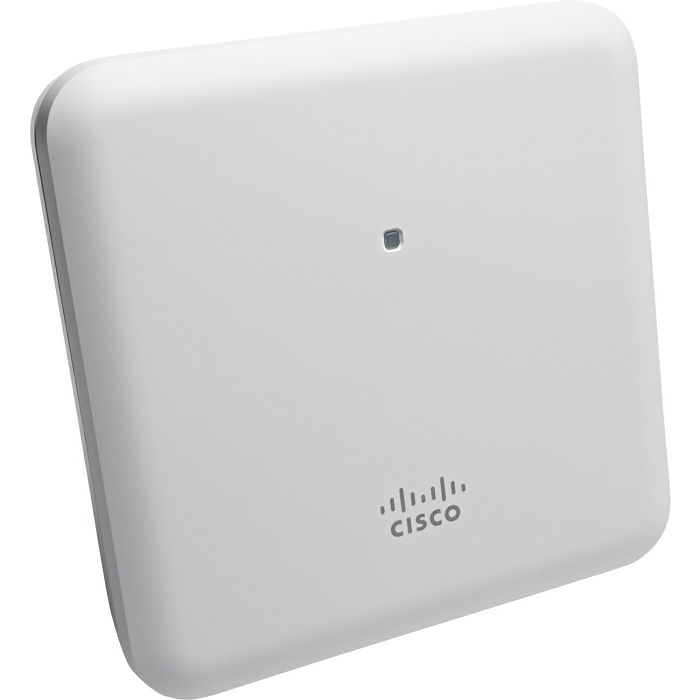

AP1852Ibežična pristupna točka
802.11ac Wave 2
Do 1,9 Gbit/s / 400 aktivnih korisnika / POE
2.4 GHz: 3x4:3SS SU-MIMO / 5 GHz: 4x4:4SS SU-MIMO, 4x4:3SS MU-MIMO
Feature Specifications Software Cisco Unified Wireless Network Software Release with AireOS wireless controllers: ?8.1 MR1 or later for the Cisco Aironet 1850 Series Access Points Deployment modes Centralized local, Standalone*, Sniffer, Cisco FlexConnect™, Monitor**, OfficeExtend**, Mesh** Supported wireless LAN controllers ?Cisco 2500 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services Module 2 (WiSM2) for Catalyst®6500 Series Switches, Cisco 5500 Series Wireless Controllers, Cisco Flex®7500 Series Wireless Controllers, Cisco 8500 Series Wireless Controllers, Cisco Virtual Wireless Controller**, Cisco 5760 Series Wireless Controllers**, Cisco Catalyst 3650/3850 Series switch with integrated controller** ?Cisco Mobility Express 802.11n version 2.0 (and related) capabilities ?4x4 MIMO with four spatial streams ?Maximal ratio combining (MRC) ?20- and 40-MHz channels ?PHY data rates up to 600 Mbps (40 MHz with 5 GHz) ?Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) ?802.11 dynamic frequency selection (DFS) ?Cyclic shift diversity (CSD) support 802.11ac Wave 1 and 2 capabilities ?4x4 MIMO with four spatial streams, single-user MIMO ?4x4 MIMO with three spatial streams, multiuser MIMO ?MRC ?802.11ac beamforming (transmit beamforming) ?20-, 40-, and 80-MHz channels ?PHY data rates up to 1.7 Gbps (80 MHz in 5 GHz) ?Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) ?802.11 DFS ?CSD support Data rates supported 802.11a: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps 802.11g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps 802.11n data rates on 2.4 GHz (only 20 MHz and MCS 0 to MCS 23) and 5 GHz: MCS Index1 GI2= 800 ns GI = 800 ns GI = 400 ns GI = 400 ns 20-MHz Rate (Mbps) 40-MHz Rate (Mbps) 20-MHz Rate (Mbps) 40-MHz Rate (Mbps) 0 6.5 13.5 7.2 15 1 13 27 14.4 30 2 19.5 40.5 21.7 45 3 26 54 28.9 60 4 39 81 43.3 90 5 52 108 57.8 120 6 58.5 121.5 65 135 1MCS Index: The Modulation and Coding Scheme (MCS) index determines the number of spatial streams, the modulation, the coding rate, and data rate values 2GI: A guard interval (GI) between symbols helps receivers overcome the effects of multipath delay spreads. Data rates supported MCS Index3 GI4= 800 ns GI = 800 ns GI = 400 ns GI = 400 ns 20-MHz Rate (Mbps) 40-MHz Rate (Mbps) 20-MHz Rate (Mbps) 40-MHz Rate (Mbps) 7 65 135 72.2 150 8 13 27 14.4 30 9 26 54 28.9 60 10 39 81 43.3 90 11 52 108 57.8 120 12 78 162 86.7 180 13 104 216 115.6 240 14 117 243 130 270 15 130 270 144.4 300 16 19.5 40.5 21.7 45 17 39 81 43.3 90 18 58.5 121.5 65 135 19 78 162 86.7 180 20 117 243 130 270 21 156 324 173.3 360 22 175.5 364.5 195 405 23 195 405 216.7 450 24 26 54 28.9 60 25 52 108 57.8 120 26 78 162 86.7 180 27 104 216 115.6 240 28 156 324 173.3 360 29 208 432 231.1 480 30 234 486 260 540 31 260 540 288.9 600 802.11ac data rates (5 GHz): MCS Index Spatial Streams GI = 800 ns GI = 400 ns 20-MHz Rate (Mbps) 40-MHz Rate (Mbps) 80-MHz Rate (Mbps) 20-MHz Rate (Mbps) 40-MHz Rate (Mbps) 80-MHz Rate (Mbps) 0 1 6.5 13.5 29.3 7.2 15 32.5 1 1 13 27 58.5 14.4 30 65 2 1 19.5 40.5 87.8 21.7 45 97.5 3 1 26 54 117 28.9 60 130 4 1 39 81 175.5 43.3 90 195 5 1 52 108 234 57.8 120 260 6 1 58.5 121.5 263.3 65 135 292.5 7 1 65 135 292.5 72.2 150 325 8 1 78 162 351 86.7 180 390 3MCS Index: The Modulation and Coding Scheme (MCS) index determines the number of spatial streams, the modulation, the coding rate, and data rate values. 4GI: A guard interval (GI) between symbols helps receivers overcome the effects of multipath delay spreads. MCS Index Spatial Streams GI = 800 ns GI = 400 ns 20-MHz Rate (Mbps) 40-MHz Rate (Mbps) 80-MHz Rate (Mbps) 20-MHz Rate (Mbps) 40-MHz Rate (Mbps) 80-MHz Rate (Mbps) 9 1 - 180 390 - 200 433.3 0 2 13 27 58.5 14.4 30 65 1 2 26 54 117 28.9 60 130 2 2 39 81 175.5 43.3 90 195 3 2 52 108 234 57.8 120 260 4 2 78 162 351 86.7 180 390 5 2 104 216 468 115.6 240 520 6 2 117 243 526.5 130 270 585 7 2 130 270 585 144.4 300 650 8 2 156 324 702 173.3 360 780 9 2 - 360 780 - 400 866.7 0 3 19.5 40.5 87.8 21.7 45 97.5 1 3 39 81 175.5 43.3 90 195 2 3 58.5 121.5 263.3 65 135 292.5 3 3 78 162 351 86.7 180 390 4 3 117 243 526.5 130 270 585 5 3 156 324 702 173.3 360 780 6 3 175.5 364.5 - 195 405 - 7 3 195 405 877.5 216.7 450 975 8 3 234 486 1053 260 540 1170 9 3 260 540 1170 288.9 600 1300 0 4 26 54 117 28.9 60 130 1 4 52 108 234 57.8 120 260 2 4 78 162 351 86.7 180 390 3 4 104 216 468 115.6 240 520 4 4 156 324 702 173.3 360 780 5 4 208 432 936 231.1 480 1040 6 4 234 486 1053 260 540 1170 7 4 260 540 1170 288.9 600 1300 8 4 312 648 1404 346.7 720 1560 9 4 - 720 1560 - 800 1733.3 Maximum number of nonoverlapping channels A (A regulatory domain): ?2.412 to 2.462 GHz; 3 channels ?5.180 to 5.320 GHz; 8 channels ?5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz) ?5.745 to 5.825 GHz; 5 channels B (B regulatory domain): ?2.412 to 2.462 GHz; 3 channels ?5.180 to 5.320 GHz; 8 channels ?5.500 to 5.720 GHz; 12 channels ?5.745 to 5.825 GHz; 5 channels C (C regulatory domain): ?2.412 to 2.472 GHz; 3 channels ?5.745 to 5.825 GHz; 5 channels D (D regulatory domain): ?2.412 to 2.462 GHz; 3 channels ?5.180 to 5.320 GHz; 8 channels ?5.745 to 5.825 GHz; 5 channels E (E regulatory domain): ?2.412 to 2.472 GHz; 3 channels ?5.180 to 5.320 GHz; 8 channels ?5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz) F (F regulatory domain): ?2.412 to 2.472 GHz; 3 channels ?5.745 to 5.825 GHz; 4 channels H (H regulatory domain): ?2.412 to 2.472 GHz; 3 channels ?5.150 to 5.350 GHz; 8 channels ?5.745 to 5.825 GHz; 5 channels I (I regulatory domain): ?2.412 to 2.472 GHz; 3 channels ?5.180 to 5.320 GHz; 8 channels K (K regulatory domain): ?2.412 to 2.472 GHz; 3 channels ?5.180 to 5.320 GHz; 8 channels ?5.500 to 5.620 GHz; 7 channels ?5.745 to 5.805 GHz; 4 channels N (N regulatory domain): ?2.412 to 2.462 GHz; 3 channels ?5.180 to 5.320 GHz; 8 channels ?5.745 to 5.825 GHz; 5 channels Q (Q regulatory domain): ?2.412 to 2.472 GHz; 3 channels ?5.180 to 5.320 GHz; 8 channels ?5.500 to 5.700 GHz; 11 channels R (R regulatory domain): ?2.412 to 2.472 GHz; 3 channels ?5.180 to 5.320 GHz; 8 channels ?5.660 to 5,805 GHz; 7 channels S (S regulatory domain): ?2.412 to 2.472 GHz; 3 channels ?5.180 to 5.320 GHz; 8 channels ?5.500 to 5.700 GHz;, 11 channels ?5.745 to 5.825 GHz; 5 channels T (T regulatory domain): ?2.412 to 2.462 GHz; 3 channels ?5.280 to 5.320 GHz; 3 channels ?5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz) ?5.745 to 5.825 GHz; 5 channels Z (Z regulatory domain): ?2.412 to 2.462 GHz; 3 channels ?5.180 to 5.320 GHz; 8 channels ?5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz) ?5.745 to 5.825 GHz; 5 channels Note:Customers are responsible for verifying approval for use in their individual countries. To verify approval that corresponds to a particular country, visithttp://www.cisco.com/go/aironet/compliance Maximum number of nonoverlapping channels 2.4 GHz ?802.11b/g: ?20 MHz: 3 ?802.11n: ?20 MHz: 3 5 GHz ?802.11a: ?20 MHz: 25 ?802.11n: ?20 MHz: 25 ?40 MHz: 12 ?802.11ac: ?20 MHz: 21 ?40 MHz: 12 ?80 MHz: 6 Note:This varies by regulatory domain. Refer to the product documentation for specific details for each regulatory domain. Receive sensitivity ?802.11b (CCK) ?-101 dBm @ 1 Mbps ?-98 dBm @ 2 Mbps ?-92 dBm @ 5.5 Mbps ?-89 dBm @ 11 Mbps ?802.11g (non HT20) ?-96 dBm @ 6 Mbps ?-95 dBm @ 9 Mbps ?-94 dBm @ 12 Mbps ?-92 dBm @ 18 Mbps ?-88 dBm @ 24 Mbps ?-85 dBm @ 36 Mbps ?-81 dBm @ 48 Mbps ?-79 dBm @ 54 Mbps ?802.11a (non HT20) ?-96 dBm @ 6 Mbps ?-95 dBm @ 9 Mbps ?-94 dBm @ 12 Mbps ?-92 dBm @ 18 Mbps ?-88 dBm @ 24 Mbps ?-85 dBm @ 36 Mbps ?-80 dBm @ 48 Mbps ?-79 dBm @ 54 Mbps Receive sensitivity 2.4 GHz ?802.11n (HT20) ?-96 dBm @ MCS0 ?-93 dBm @ MCS1 ?-90 dBm @ MCS2 ?-87 dBm @ MCS3 ?-84 dBm @ MCS4 ?-79 dBm @ MCS5 ?-78 dBm @ MCS6 ?-76 dBm @ MCS7 ?-93 dBm @ MCS8 ?-90 dBm @ MCS9 ?-87 dBm @ MCS10 ?-84 dBm @ MCS11 ?-81 dBm @ MCS12 ?-76 dBm @ MCS13 ?-75 dBm @ MCS14 ?-73 dBm @ MCS15 ?-91 dBm @ MCS16 ?-88 dBm @ MCS17 ?-85 dBm @ MCS18 ?-82 dBm @ MCS19 ?-79 dBm @ MCS20 ?-74 dBm @ MCS21 ?-73 dBm @ MCS22 ?-71 dBm @ MCS23 5 GHz ?802.11n (HT20) ?-96 dBm @ MCS0 ?-92 dBm @ MCS1 ?-90 dBm @ MCS2 ?-86 dBm @ MCS3 ?-83 dBm @ MCS4 ?-79 dBm @ MCS5 ?-77 dBm @ MCS6 ?-76 dBm @ MCS7 ?-93 dBm @ MCS8 ?-89 dBm @ MCS9 ?-87 dBm @ MCS10 ?-83 dBm @ MCS11 ?-80 dBm @ MCS12 ?-76 dBm @ MCS13 ?-74 dBm @ MCS14 ?-73 dBm @ MCS15 ?-91 dBm @ MCS16 ?-87 dBm @ MCS17 ?-85 dBm @ MCS18 ?-81 dBm @ MCS19 ?-78 dBm @ MCS20 ?-74 dBm @ MCS21 ?-72 dBm @ MCS22 ?-71 dBm @ MCS23 ?-89 dBm @ MCS24 ?-85 dBm @ MCS25 ?-83 dBm @ MCS26 ?-79 dBm @ MCS27 ?-76 dBm @ MCS28 ?-72 dBm @ MCS29 ?-70 dBm @ MCS30 ?-69 dBm @ MCS31 5 GHz ?802.11n (HT40) ?-93 dBm @ MCS0 ?-90 dBm @ MCS1 ?-87 dBm @ MCS2 ?-84 dBm @ MCS3 ?-80 dBm @ MCS4 ?-76 dBm @ MCS5 ?-75 dBm @ MCS6 ?-73 dBm @ MCS7 ?-90 dBm @ MCS8 ?-87 dBm @ MCS9 ?-84 dBm @ MCS10 ?-81 dBm @ MCS11 ?-77 dBm @ MCS12 ?-73 dBm @ MCS13 ?-72 dBm @ MCS14 ?-70 dBm @ MCS15 ?-88 dBm @ MCS16 ?-85 dBm @ MCS17 ?-82 dBm @ MCS18 ?-79 dBm @ MCS19 ?-75 dBm @ MCS20 ?-71 dBm @ MCS21 ?-70 dBm @ MCS22 ?-68 dBm @ MCS23 ?-86 dBm @ MCS24 ?-83 dBm @ MCS25 ?-80 dBm @ MCS26 ?-77 dBm @ MCS27 ?-73 dBm @ MCS28 ?-69 dBm @ MCS29 ?-68 dBm @ MCS30 ?-66 dBm @ MCS31 802.11ac Receive Sensitivity 802.11ac (non HT80) ?-89 dBm @ 6 Mbps ?-73 dBm @ 54 Mbps MCS Index Spatial Streams VHT20 VHT40 VHT80 0 1 -96 dBm -93 dBm -89 dBm 7 1 -76 dBm -73 dBm -70 dBm 8 1 -71 dBm -69 dBm -66 dBm 9 1 NA -67 dBm -64 dBm 0 2 -93 dBm -90 dBm -86 dBm 7 2 -73 dBm -70 dBm -67 dBm 8 2 -68 dBm -66 dBm -63 dBm 9 2 NA -64 dBm -61 dBm 0 3 -91 dBm -88 dBm -84 dBm 7 3 -71 dBm -68 dBm -65 dBm 8 3 -66 dBm -64 dBm -61 dBm 9 3 -64 dBm -62 dBm -59 dBm MCS Index Spatial Streams VHT20 VHT40 VHT80 0 4 -89 dBm -86 dBm -82 dBm 7 4 -69 dBm -66 dBm -63 dBm 8 4 -64 dBm -62 dBm -59 dBm 9 4 NA -60 dBm -57 dBm Maximum transmit power 2.4 GHz ?802.11b ?22 dBm, 3 antennas ?802.11g ?22 dBm, 3 antennas ?802.11n (HT20) ?22 dBm, 3 antennas 5 GHz ?802.11a ?23 dBm, 4 antennas ?802.11n (HT20) ?23 dBm, 4 antennas ?802.11n (HT40) ?23 dBm, 4 antennas ?802.11ac ?non-HT80: 23 dBm, 4 antennas ?VHT20: 23 dBm, 4 antennas ?VHT40: 23 dBm, 4 antennas ?VHT80: 23 dBm, 4 antennas Note:The maximum power setting will vary by channel and according to individual country regulations. Refer to the product documentation for specific details. Available transmit power settings 2.4 GHz ?22 dBm ?19 dBm ?16 dBm ?13 dBm ?10 dBm ?7 dBm ?4 dBm ?1 dBm 5 GHz ?23 dBm ?20 dBm ?17 dBm ?14 dBm ?11 dBm ?8 dBm ?5 dBm ?2 dBm Note:The maximum power setting will vary by channel and according to individual country regulations. Refer to the product documentation for specific details. Integrated antenna ?2.4 GHz, gain 3 dBi, internal omni, horizontal beamwidth 360° ?5 GHz, gain 5 dBi, internal omni, horizontal beamwidth 360° External antenna (sold separately) ?Certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz) ?Cisco offers the industry's broadest selection ofantennas, delivering optimal coverage for a variety of deployment scenarios Interfaces ?1 x 10/100/1000BASE-T autosensing (RJ-45), Power over Ethernet (PoE) ?1 x 10/100/1000BASE-T autosensing (RJ-45), AUX (used for Link Aggregation) ?Management console port (RJ-45) ?USB 2.0 (enabled via future software) Indicators ?Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors Dimensions (W x L x H) ?Access point (without mounting bracket): 8.3 x 8.3 x 2 in. (210.8 x 210.8 x 50.8 mm) Weight ?3.12 lb (1.41 kg) Environmental Cisco Aironet 1850i ?Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C) ?Nonoperating (storage) altitude test: 25°C, 15,000 ft. ?Operating temperature: 32° to 104°F (0° to 40°C) ?Operating humidity: 10% to 90% (noncondensing) ?Operating altitude test: 40°C, 9843 ft. Cisco Aironet 1850e ?Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C) ?Nonoperating (storage) altitude test: 25°C, 15,000 ft. ?Operating temperature: -4° to 122°F (-20° to 50°C) ?Operating humidity: 10% to 90% (noncondensing) ?Operating altitude test: 40°C, 9843 ft. Environmental System memory ?1 GB DRAM ?256 MB flash Input power requirements ?AP1850: 44 to 57 VDC ?Power supply and power injector: 100 to 240 VAC; 50 to 60 Hz Power draw ?20.9W Note:When deployed using a Power over Ethernet (PoE) specification, the power drawn from the power sourcing equipment will be higher by some amount, depending on the length of the interconnecting cable. Powering options ?802.3at ?Enhanced PoE ?Cisco power injector, AIR-PWRINJ4= ?Cisco local power supply, AIR-PWR-C= ?Cisco power injector, AIR-PWRINJ5= (Note:this injector supports 802.3af only) ?802.3af Note:If 802.3af PoE is the source of power,(1) the 1852e 2.4-GHz radio will shift to 2x3 from 3x4,(2)The USB port and AUX Ethernet port are disabled on both the 1852i and 1852e. Warranty Limited lifetime hardware warranty Compliance standards ?UL 60950-1 ?CAN/CSA-C22.2 No. 60950-1 ?UL 2043 ?IEC 60950-1 ?EN 60950-1 ?EN 50155 ?Radio approvals: ?FCC Part 15.247, 15.407* ?RSS-210 (Canada) ?EN 300.328, EN 301.893 (Europe) ?ARIB-STD 66 (Japan) ?ARIB-STD T71 (Japan) ?EMI and susceptibility (Class B) ?FCC Part 15.107 and 15.109* ?ICES-003 (Canada) ?VCCI (Japan) ?EN 301.489-1 and -17 (Europe) ?EN 60601-1-2 EMC requirements for the Medical Directive 93/42/EEC ?IEEE standards: ?IEEE 802.11a/b/g, 802.11n, 802.11h, 802.11d ?IEEE 802.11ac Draft 5 ?Security: ?802.11i, Wi-Fi Protected Access 2 (WPA2), WPA ?802.1X ?Advanced Encryption Standard (AES) ?Extensible Authentication Protocol (EAP) types: ?EAP-Transport Layer Security (TLS) ?EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol Version 2 (MSCHAPv2) ?Protected EAP (PEAP) v0 or EAP-MSCHAPv2 ?EAP-Flexible Authentication via Secure Tunneling (FAST) ?PEAP v1 or EAP-Generic Token Card (GTC) ?EAP-Subscriber Identity Module (SIM) ?Multimedia: ?Wi-Fi Multimedia (WMM) ?Other: ?FCC Bulletin OET-65C ?RSS-102 *Supported via Cisco Mobility Express with controller function running on the access point - not Cisco IOS®Software Autonomous based. **Future. Warranty Information The Cisco Aironet 1850 Series Access Points come with a limited lifetime warranty that provides full warranty coverage of the hardware for as long as the original end user continues to own or use the product. The warranty includes 10-day advance hardware replacement and ensures that software media are defect-free for 90 days. For more details, visithttp://www.cisco.com/go/warranty. Ordering Information To place an order, visit theCisco How to Buy page. To download software, visit theCisco Software Center. Table 2.Ordering Information Product Name Part Number Aironet 1850 Series Cisco Aironet 1852i Access Point: Indoor environments, with internal antennas ?AIR-AP1852I-x-K9: Dual-band, controller-based 802.11a/g/n/ac, Wave 2 ?AIR-AP1852I-x-K9C: Dual-band, controller-based 802.11a/g/n/ac, Wave 2, configurable ?Regulatory domains: (x = regulatory domain) Cisco Aironet 1852e Access Point: Indoor, challenging environments, with external antennas ?AIR-AP1852E-x-K9: Dual-band, controller-based 802.11a/g/n/ac, Wave 2 ?AIR-AP1852E-x-K9C: Dual-band, controller-based 802.11a/g/n/ac, Wave 2, configurable ?Regulatory domains: (x = regulatory domain) Customers are responsible for verifying approval for use in their individual countries. To verify approval that corresponds to a particular country or the regulatory domain used in a specific country, visithttp://www.cisco.com/go/aironet/compliance. Not all regulatory domains have been approved. As they are approved, the part numbers will be available on the Global Price List.
