Superior Wi-Fi Speeds and Performance
- QCA enterprise-class chipsets, dedicated high-power amplifier, and professional antenna along with the latest generation 802.11ac Wave 2 MU-MIMO technology ensure superior 1750 Mbps Wi-Fi speeds and long-range coverage over 2.4GHz and 5GHz wireless bands.
Seamless Roaming
- 802.11k/802.11v seamless roaming switches clients automatically to the access point with the optimal signal with a seamless transition when moving.§ This allows sensitive applications like VoIP and video conferences to go uninterrupted.
Omada SDN—Smarter Cloud Solution for Business Networking
- Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.
Hassle-Free Centralized Cloud Management:
- 100% centralized cloud management of whole network from different sites—all controlled from a single interface anywhere, anytime.
Secure Guest Network with Facebook Wi-Fi and SMS Login
- Guest Network provides secure access to guests sharing your Wi-Fi network, with captive portal helping maintain only authorized guests to use the network. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.
Multiple PoE Options for Easy Installation
- EAP245 supports both 802.3af PoE and Passive PoE power supply, which can be either powered by a PoE switch or the provided PoE adapter. The addition of elegant appearance and simple mounting design for easy attachment to a wall or ceiling further makes deployment effortless and flexible.
Easy Management with the Omada App
- Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smartphone or tablet.
Features
- Fast Dual-Band Wi-Fi: Simultaneous 450 Mbps on 2.4 GHz and 1300 Mbps on 5 GHz totals 1750 Mbps Wi-Fi speeds.†
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)‡, Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.§
- PoE Support: Support both standard 802.3af/at and Passive PoE (PoE adapter included) for flexible installations.
- Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
- Advanced Wireless Tech: Optimize network performance with MU-MIMO, Band Steering, Airtime Fairness and Beamforming technologies.
Specifications
HARDWARE FEATURES
- Interface: 2 × Gigabit Ethernet (RJ-45) Ports
- Physical Security Lock: Yes
- Button: Reset
- Power Supply: 802.3af/at PoE or 48V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)
- Power Consumption: 12.3 W
- Dimensions ( W x D x H ): 8.1 × 7.1 × 1.5 in) (206 × 182 × 37 mm)
. Antenna Type: Internal Omni
* 2.4GHz: 3 × 4dBi
* 5GHz: 3 × 4dBi
- Mounting: Ceiling or Wall Mount (Mounting kit included)
WIRELESS FEATURES
- Wireless Standards: IEEE 802.11ac/n/g/b/a
- Frequency: 2.4GHz and 5GHz
- Signal Rate:
* 5GHz:Up to 1300Mbps
* 2.4GHz:Up to 450Mbps
Wireless Functions:
- Multiple SSIDs(Up to 16 SSIDs, 8 for each band)
- Enable/Disable Wireless Radio
- Automatic Channel Assignment
- Transmit Power Control (Adjust Transmit Power on dBm)
- QoS(WMM)
- MU-MIMO (Wave 2)
- Seamless Roaming
- Band Steering
- Load Balance
- Airtime Fairness
- Beamforming
- Rate Limit
- Reboot Schedule
- Wireless Schedule
- Wireless Statistics based on SSID/AP/Client
Wireless Security:
- Captive Portal Authentication
- Access Control
- Wireless Mac Address Filtering
- Wireless Isolation Between Clients
- SSID to VLAN Mapping
- Rogue AP Detection
- 802.1X Support
- 64/128/152-bit WEP / WPA / WPA2-Enterprise,
- WPA-PSK / WPA2-PSK
Transmission Power FCC:
* ?25dBm(2.4GHz)
* ?27dBm(5GHz)
MANAGEMENT
- Omada App: Yes
- Centralized Management:
* Omada Cloud-Based Controller
* Omada Hardware Controller (OC300)
* Omada Hardware Controller (OC200)
* Omada Software Controller
- Cloud Access: Yes, omada.tplinkcloud.com
- Email Alerts: Yes
- LED ON/OFF Control: Yes
- Management MAC Access Control: Yes
- SNMP: v1, v2c
- System Logging Local/Remote Syslog: Local/Remote Syslog
- SSH: Yes
- Web-based Management: HTTP/HTTPS
- L3 Management: Yes
- Multi-site Management: Yes
- Management VLAN. Yes
- Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller.
OTHERS
- Certification: FCC, RoHS
- Package Contents:

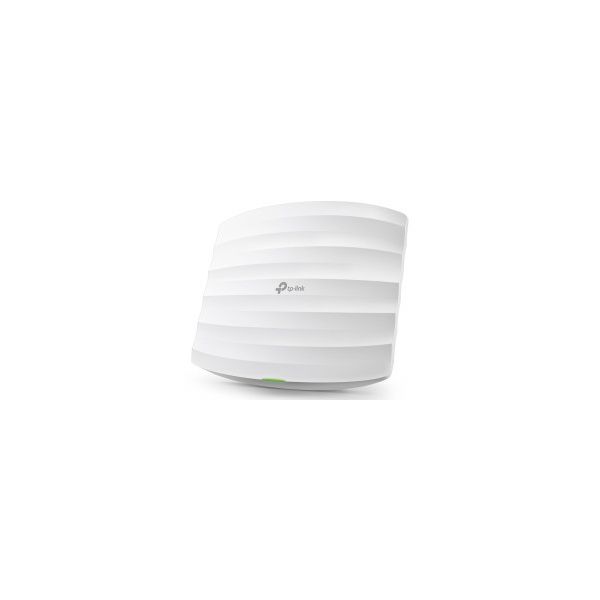

* AC1750 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP245
* Gigabit Passive PoE Adapter
* Power Cord
* Mounting Kit
* Installation Guide
Environment
- Operating Temperature: 0?~40? (32?~104?)
- Storage Temperature: -40?~70? (-40?~158?)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
